Battery storage wiring is governed primarily by the National Electrical Code (NEC), specifically Articles 480, 706, and 690, along with UL product standards, NFPA 855, and the International Fire Code (IFC). These codes work together to cover everything from conductor sizing and overcurrent protection to installation clearances and fire suppression requirements. The sections below break down each layer of the regulatory framework so you know exactly what applies to your project.
Which NEC articles govern battery energy storage wiring?
Battery energy storage system (BESS) wiring is primarily governed by NEC Article 706 (Energy Storage Systems), which was introduced to consolidate requirements previously scattered across multiple articles. Article 706 covers system disconnects, overcurrent protection, wiring methods, and labeling for standalone and grid-tied storage systems. Article 480 applies specifically to stationary storage batteries, and Article 690 intersects when the storage system is integrated with a solar PV array.
Understanding how these articles interact is essential for any engineer designing a battery storage installation. Article 706 acts as the primary governing document and references other NEC articles where applicable. Here is how the key articles divide responsibility:
- Article 706: The main framework for energy storage systems, covering disconnecting means, overcurrent protection, wiring methods, and system labeling
- Article 480: Addresses stationary battery installations, including ventilation, spacing, and conductor requirements specific to battery rooms and enclosures
- Article 690: Applies when the storage system is directly coupled to a PV source, governing the DC side of the combined system
- Article 310: Specifies conductor ampacity and temperature ratings, which determine the minimum wire gauge for battery circuits
- Article 240: Covers overcurrent protection requirements that apply to battery feeders and branch circuits
One practical point worth noting: the NEC is updated on a three-year cycle, and the 2023 edition introduced refinements to Article 706 that clarified disconnecting means requirements for large-scale systems. Always confirm which edition your authority having jurisdiction (AHJ) has adopted, since some jurisdictions are still enforcing the 2020 or even 2017 NEC as of 2026.
What do UL standards require for battery storage wiring?
UL standards for battery storage focus primarily on product-level safety rather than installation wiring methods, but they directly affect what equipment you are permitted to use in a code-compliant installation. The most relevant standards are UL 9540 (Standard for Energy Storage Systems and Equipment) and UL 9540A (Test Method for Evaluating Thermal Runaway Fire Propagation), along with UL 1973 for battery systems used in stationary applications.
UL 9540 certification is increasingly required by AHJs before a BESS can be permitted at all. The standard evaluates the complete system, including the battery modules, battery management system (BMS), inverter, and associated wiring harnesses, as an integrated assembly. This means the wiring internal to a listed BESS unit is already evaluated as part of the listing, but the field wiring connecting that unit to the rest of the electrical system must still comply with NEC requirements.
UL 1973 specifically addresses the battery cells and modules themselves, covering electrochemical performance and safety under fault conditions. When specifying conductors and terminations for battery circuits, engineers should verify that the wiring components are compatible with the temperature ratings and fault current levels documented in the UL listing. Mismatched termination ratings are a common source of inspection failures on battery storage projects.
How do IFC and NFPA 855 affect battery storage installations?
The International Fire Code (IFC) and NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) govern the fire safety aspects of battery storage installations, including separation distances, suppression systems, and quantity limits that directly constrain how and where wiring can be routed. These codes operate alongside the NEC rather than replacing it, and both are typically enforced by the fire marshal rather than the electrical inspector.
NFPA 855 establishes maximum energy storage quantities per fire compartment, which affects system layout and therefore wiring runs. For indoor installations, it specifies minimum clearances between battery units and between units and walls, which in turn determine conduit routing paths. The standard also requires specific signage and emergency disconnect locations, which must be factored into the electrical design from the start.
The IFC aligns closely with NFPA 855 in most jurisdictions and adds requirements around emergency responder access and hazardous materials management plans for large systems. From a wiring perspective, the most significant IFC impact is the requirement for emergency disconnects accessible to fire department personnel, which must be clearly labeled and positioned according to both the IFC and NEC Article 706. Coordinating these requirements early prevents costly redesigns during permitting.
What wiring methods are acceptable for DC battery circuits?
Acceptable wiring methods for DC battery circuits are defined by NEC Article 706 in combination with Article 310 and Chapter 3. Approved methods include metal conduit systems (EMT, IMC, RMC), metal-clad cable (Type MC), and in some cases USE-2 or RHW-2 conductors rated for the voltage and temperature of the application. The specific method permitted depends on whether the installation is indoors or outdoors, exposed or concealed, and what voltage class the system operates at.
Indoor DC battery wiring

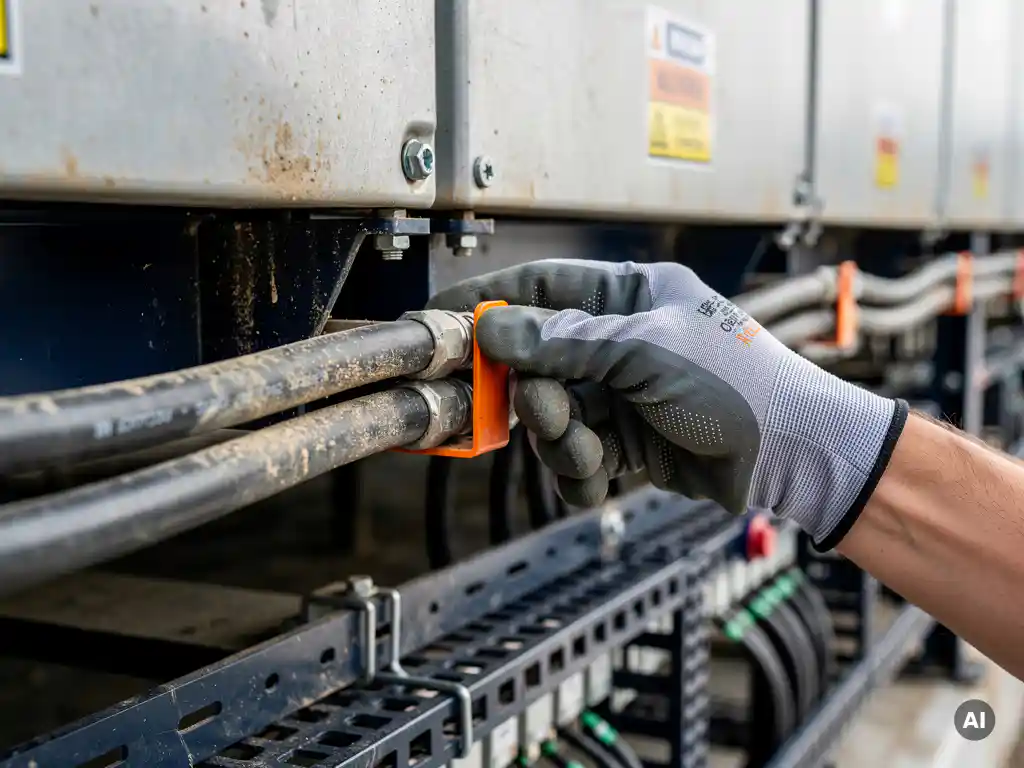

For indoor battery rooms and enclosures, EMT or rigid metal conduit is the most commonly specified wiring method because it provides mechanical protection and is straightforward to inspect. NEC Article 480 requires that conductors in battery rooms be resistant to the electrolyte environment if vented lead-acid batteries are present. For lithium-ion systems, which are now dominant in commercial and utility-scale storage, this concern is less acute, but conduit still provides important mechanical protection in high-traffic equipment rooms.
Outdoor and utility-scale DC wiring
Outdoor DC battery circuits on utility-scale projects frequently use direct-buried USE-2 conductors or conductors in Schedule 40 or Schedule 80 PVC conduit, depending on burial depth and exposure conditions. Where conductors transition above grade, a listed weatherproof conduit system is required. DC battery circuits operating above 1,000 volts fall under NEC Article 490 and require medium-voltage rated cables and associated termination hardware, which significantly changes the material specification and installation requirements.
Do local codes add requirements beyond the NEC for battery storage?
Yes, local codes frequently add requirements beyond the NEC for battery storage wiring, and in some jurisdictions these additions are substantial. California, for example, has adopted its own Title 24 electrical standards that layer additional requirements on top of the NEC, and many municipalities have local amendments that affect disconnect placement, labeling language, or conduit fill requirements. The AHJ always has the authority to impose more stringent requirements than the base code.
Some of the most common local additions engineers encounter include:
- Mandatory arc-fault protection on DC battery circuits even where the NEC does not explicitly require it
- Specific conduit material requirements (some jurisdictions prohibit PVC in certain occupancy types)
- Enhanced labeling requirements with specific color coding or bilingual signage
- Stricter separation distances between battery wiring and other building systems
- Requirements for rapid shutdown systems that go beyond NEC 706 minimums
The practical implication is that you should never design a battery storage wiring system based solely on the NEC without first reviewing the local amendments and speaking with the AHJ. Pre-application meetings with the electrical inspector and fire marshal before finalizing the design are time well spent, particularly on large commercial or utility-scale projects where a late-stage code conflict can delay commissioning by weeks.
If you are working on solar-plus-storage projects and want to streamline the engineering side of your PV designs, Virto Solar offers tools built specifically for commercial and utility-scale work. And if you have questions about how our software fits your workflow, get in touch with our team directly.
Frequently Asked Questions
How do I find out which NEC edition my local AHJ is currently enforcing?
The most reliable approach is to contact your local building or electrical inspection department directly and ask which NEC edition has been formally adopted, along with any local amendments. Many jurisdictions also publish their adopted codes on their official websites. Since some AHJs are still enforcing the 2017 or 2020 NEC as of 2026, confirming this before starting your design prevents having to rework calculations or disconnect configurations mid-project.
What are the most common wiring mistakes that cause battery storage projects to fail inspection?
The most frequent inspection failures involve mismatched termination temperature ratings, undersized conductors that don’t account for DC continuous-load ampacity rules (typically 125% of the continuous current), and missing or incorrectly placed labeling required by NEC Article 706. Another common issue is field wiring that doesn’t match the voltage or fault-current ratings documented in the system’s UL 9540 listing. Reviewing the equipment’s listing documentation before specifying conductors and terminations can eliminate most of these issues before the inspector ever arrives on site.
Is a pre-application meeting with the AHJ really necessary for smaller commercial battery storage projects?
While not always legally required, a pre-application meeting is strongly recommended even for smaller commercial projects, because local amendments and fire marshal requirements can significantly affect your design in ways that aren’t obvious from reading the base codes alone. Catching a conduit material restriction or an emergency disconnect placement requirement before finalizing drawings is far less costly than a redesign after permit submission. For projects under 50 kWh, a brief phone call with the electrical inspector is often sufficient to surface any jurisdiction-specific concerns.
How does thermal runaway risk affect wiring design decisions for lithium-ion battery systems?
Thermal runaway is primarily addressed at the system level through UL 9540A testing and NFPA 855 separation and suppression requirements, but it has direct implications for wiring design as well. Conductors and conduit systems should be routed away from battery module venting paths, and wiring should not obstruct access to fire suppression equipment or emergency disconnects. For indoor installations, selecting conduit systems with appropriate fire ratings and ensuring that wiring penetrations through fire-rated walls are properly sealed are critical steps that are easy to overlook until the fire marshal review.
Can I use the same wiring methods for a DC-coupled solar-plus-storage system as I would for a standalone battery system?
Not always. When a battery storage system is DC-coupled to a PV array, NEC Article 690 comes into play alongside Article 706, and the combined system must satisfy both sets of requirements. This can affect conductor voltage ratings, overcurrent protection sizing, and rapid shutdown requirements in ways that differ from a standalone BESS. The safest approach is to treat the DC-coupled section as a PV circuit for Article 690 compliance purposes and the storage-side wiring as an Article 706 circuit, then reconcile any conflicts with the AHJ during the pre-application process.
What labeling requirements should I plan for on a battery storage wiring installation?
NEC Article 706 requires labels at the system disconnecting means, at each point of interconnection with other power sources, and at the service equipment, identifying the presence of an energy storage system. NFPA 855 and the IFC add requirements for hazard identification signage, emergency contact information, and in some jurisdictions, specific color-coded labels for DC conductors. Local amendments may further require bilingual signage or specific label materials rated for outdoor exposure. Building all of these requirements into your drawing set from the start — rather than treating labeling as an afterthought — is one of the simplest ways to avoid a correction notice at final inspection.
How do conductor ampacity calculations for DC battery circuits differ from standard AC circuit sizing?
DC battery circuits are treated as continuous loads under the NEC, meaning conductors must be sized at 125% of the maximum continuous current rather than the nominal operating current. Additionally, DC systems don’t benefit from the power factor and neutral current considerations that sometimes allow smaller conductors on AC circuits, so DC conductors are often larger than engineers initially expect. Voltage drop is also more significant on DC circuits, particularly for long runs in utility-scale installations, so it’s worth running a voltage drop calculation independently from the ampacity calculation to confirm the final conductor size.
